CK-40

Stereo Large-Diaphram FET Multi Pattern Microphone

US PRICE: $599

The Independently Controllable Stereo Solution.

Anyone familiar with Avantone’s C-series mics knows to expect extremely reliable service and performance that rival the most vaunted mics ever made at a fraction of the cost. Just a glance at Avantone’s unmistakable cabernet-finished mics sparks instant recognition of the industry’s new standard of pro-studio and live application mics.

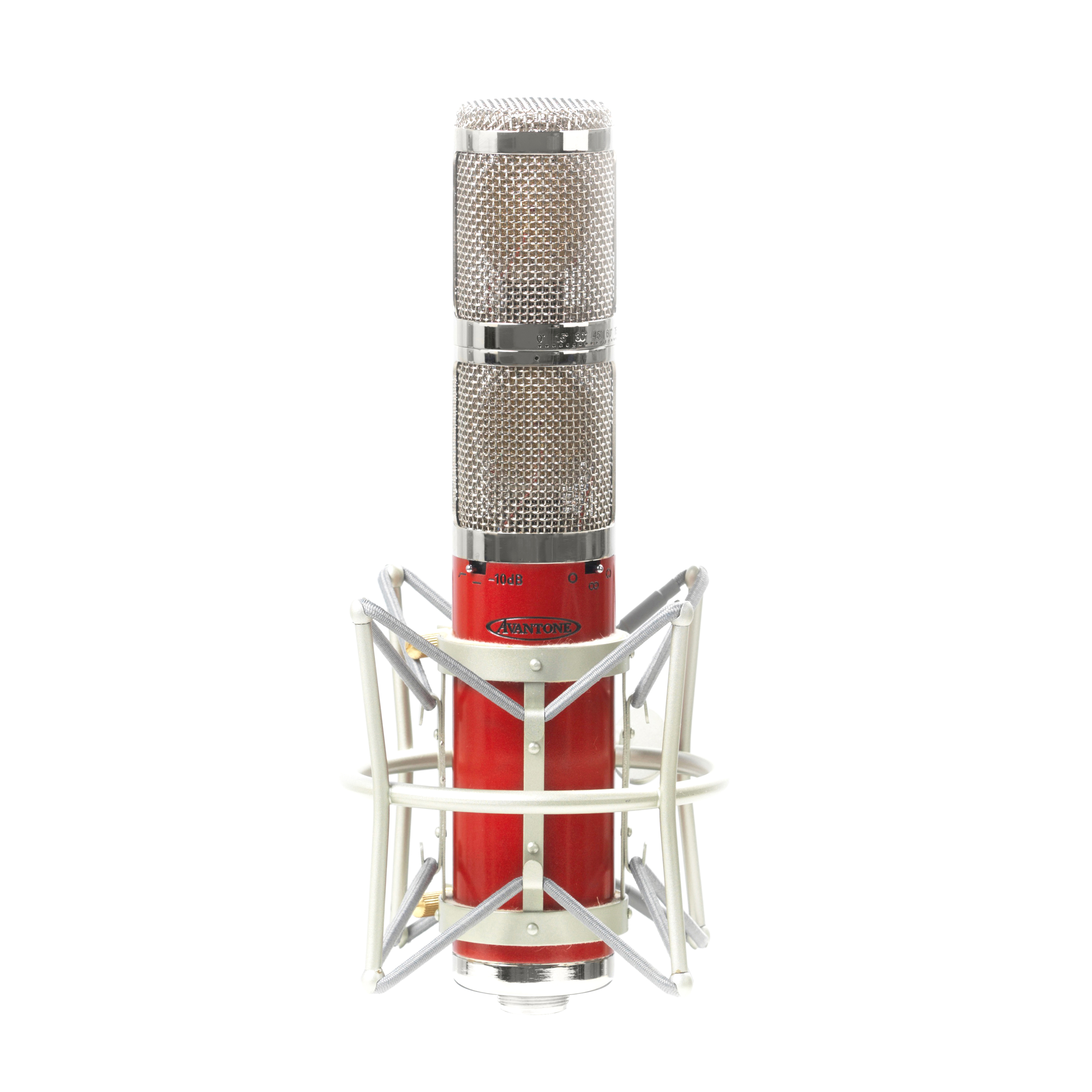

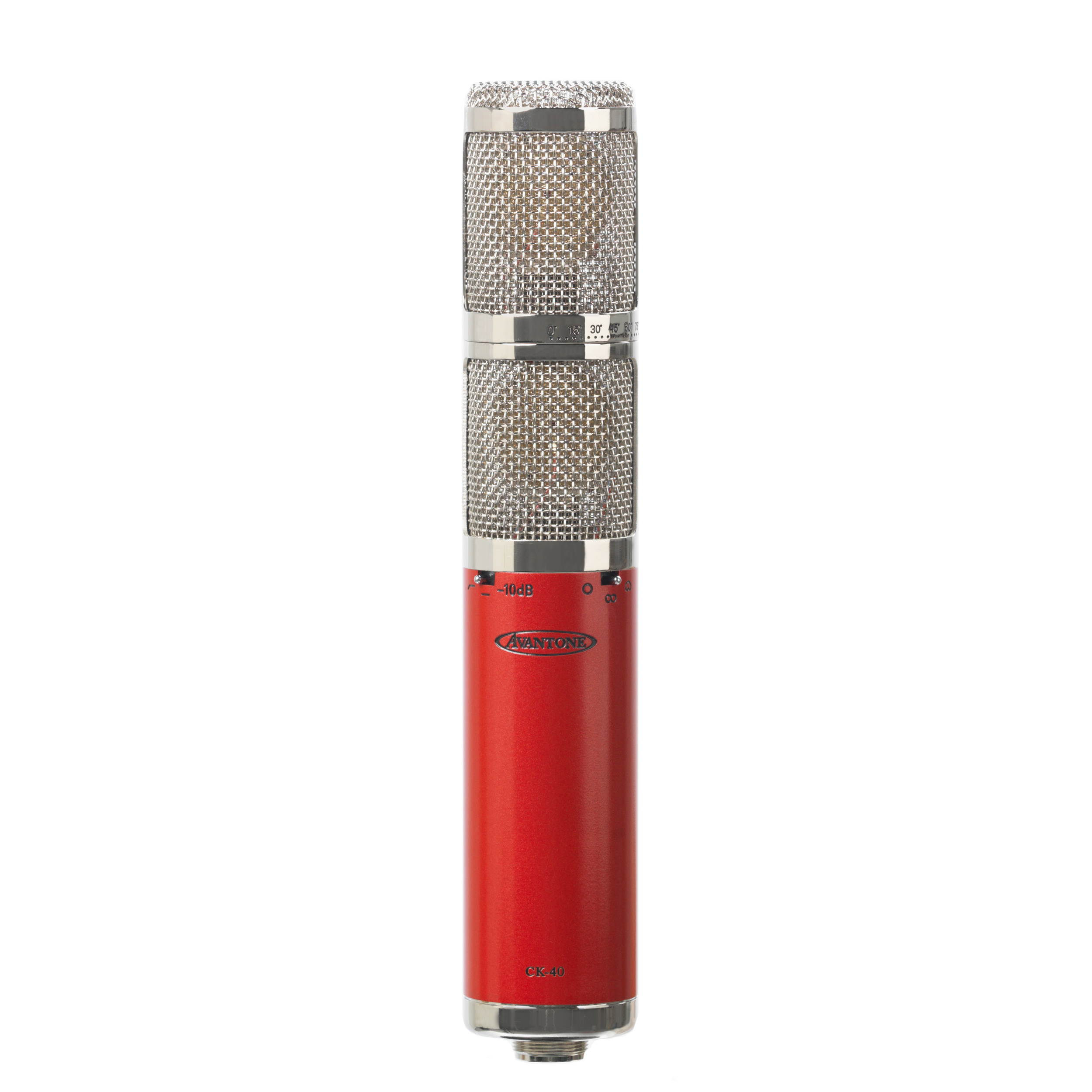

The CK-40 is Avantone’s most versatile and essential FET-style mic. A pair of 35mm center-terminated, tightly-stacked pressure gradient transducers allow accurate stereo imaging without producing proximity-based phase issues. Each capsule features completely independent controls; a lowpass filter and -10db attenuation keep low-end interference to minimum at any sound level. The upper capsule/grill assembly can rotate up to 90 degrees off-axis with the lower capsule. Thanks to independent multi-pattern switching, XY, M-S and Blumlein stereo separation options are easily available and well-defined, without needing to touch the retro-style shock mount (included).

The Avantone CK-40 uses ultra-quiet Class-A FET circuitry, with well-balanced performance across a wide frequency range, and its stereo imaging and spatial possibilities are limited only by your imagination. The CK-40 is well-suited for recording anything you need to capture.

Gauss 7

Specifications

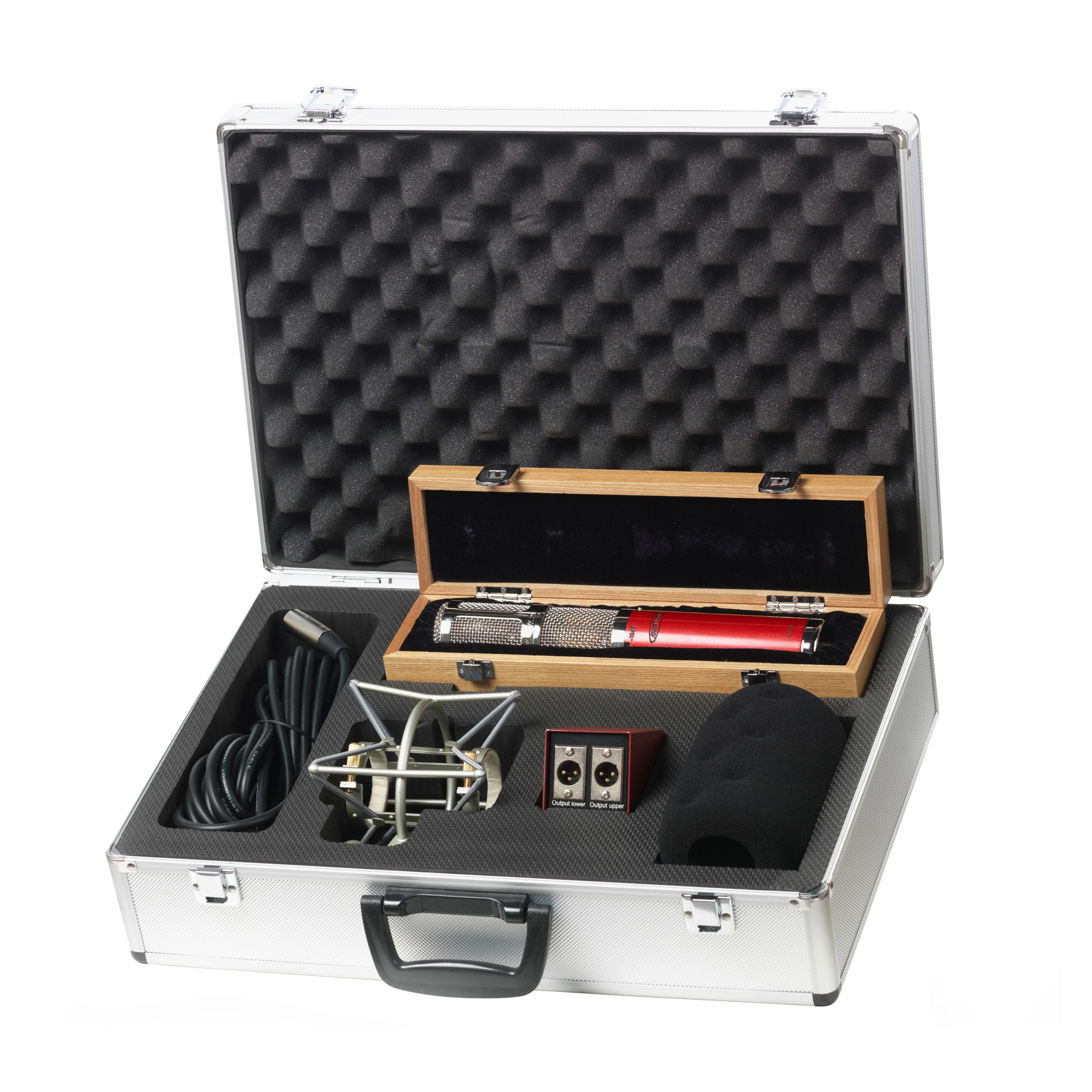

The CK-40 operates on standard 48-volt phantom power. “Retro” Shockmount, 5-Pin mic cable, 1x2 stereo splitter box, 30' Cable, Foam Filter and Padded wooden box included.

  • Type: Stereo True Condenser Microphone
  • Polar Pattern(s): Cardioid, Omni, Figure-8 (x2)
  • Capsule: (2) Dual plate 35mm gold sputtered diaphragm / brass assembly
  • Frequency Response: 20-20,000 Hz +/- 3dB
  • Output Impedance: <=250 Ohms
  • Sensitivity: -40dB
  • S/N Ratio: 77dB re 1Pa
  • Maximum SPL: 147 dB (0.5% THD @1000Hz)
  • Equivalent Noise Level: 17dB (A weighted EC651)
  • Output Connector: Male XLR 5-pin with included breakout box and cable
  • High-Pass Switch: 80 Hz 6dB/octave
  • Attenuation Switch: -10dB
  • Power Requirement: Standard 48 Volt Phantom (x2) 3mA current consumption
  • Dimensions: 27.6mm X 49mm
  • Weight: .95 kgs / 2.1 lbs.
  • Finish: Polished Nickel trim / Metallic Cabernet Red Body
